Helper

This file contains the helper functions used all over the library. It is not intended to be used directly by the user but can be useful in certain situations.

floating point conversion routines

The floating point to binary (and back) conversions support the IEEE 754 standard and custom method proposed in here. Both these functions are intended for n > 2 matrices of binary values but support single array conversions.

Plotting routines

There is a function to plot 3d functions (like the ones provided in Tests functions), this function is called plot3d() and supports all plotting routines for 3d plots provided by matplotlib.

Various functions

Sigmoid

The file also contains a function for the sigmoid function in its more simple form and a version containing all the different variables used in the sigmoid function. A derivative of the sigmoid function is also provided.

The simplified sigmoid function is called sigmoid() and is defined as,

\[f(x) = \frac{1}{1 + e^{-x}}.\]

The more complex version is called sigmoid2() with the following definition,

\[f(x) = \dfrac{a + (b - a)}{1 + Q \cdot \left( \exp(-c \cdot (x -d) \right)^{1/nu}}.\]

The derivative of the sigmoid function is called sigmoid_derivative().

Decorator test

The is_decorated function test if a function is decorated with a decorator.

Convertpop2bin

Converts a population of binary values to a population of integers.

When using C

This file is also included in the C library and is used to convert the integers to binary values and in reverse. The functions are called:

integer to binary

  • int2bin()

  • intarr2binarr()

  • intmat2binmat()

binary to integer

  • bin2int()

  • binarr2intarr()

  • binmat2intmat()

Furthermore, the more high level bin to float and float to bin functions are also included in the C library. These functions are named like the python functions and can both be used for integers and floats.

These functions include:

  • ndbit2int()

  • int2ndbit()

And use the same bias and factor parameters as the python functions to compute the floating point values.

Note

The C library does not initialise arrays/matrices these should be initialised before calling the functions in the form of a value-array, the amount of genes/individuals/bitsize and a correctly sized result-array. The functions will not check if the result-array is correctly sized and will overwrite any values in the result-array.

The C library also includes the sigmoid function and its derivative. These functions are named as in the python library. The sigmoid functions operate on arrays and are used in the same way as the conversion functions where it is expected that the result-array is correctly sized.

Furthermore, it is possible to print matrices of integers and floats in a similar manner to numpy using the functions printMatrix() and printMatrixf().

And routines for performing roulette wheel selection on an array of probabilities using the function roulette_wheel().

Known errors

The conversion routines for ndbit2int and int2ndbit are prone to rounding errors. This is due to the fact that the conversion routines use the floating point representation of the integers. This means that the conversion routines are not exact and can be off by a small amount.

These errors become very present when working with large bitsizes (>32 bits) and when using small bitsizes (<4 bits). In C and python the error rates can be found in the figure below.

_images/error_rate_zoom.png

Speed-up of the C library

Below is a graph showing the speed-up of the C library compared to the python library for the conversion routines of the population as floats to binary and back. The tests are done for 16 bits populations with a size of 16 individuals where the amount of genes is varied between 1 and 40. The bias and factor are set to 0 and 5 respectively for the normalisation of the integer to floating point values.

Floating point to binary conversion using int2ndbit:

_images/int2ndbit_cvsp.png

Binary to floating point conversion using ndbit2int:

_images/ndbit2int_cvsp.png

Below is a graph showing the routines in Python:

_images/Proutines.png

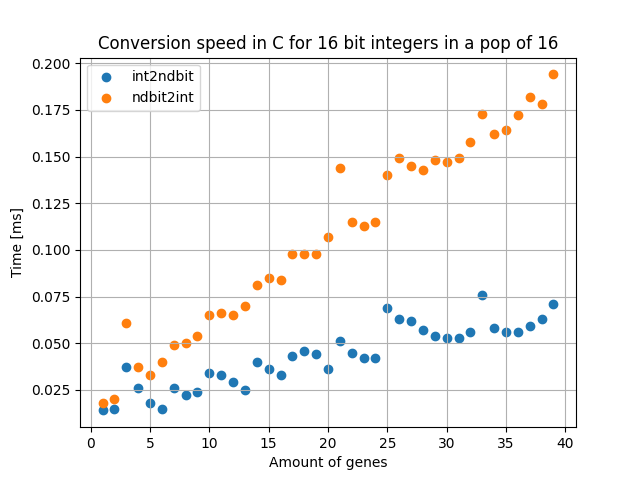

The difference between the two routines in C:

_images/Croutines.png

Helper functions in Python:

dfmcontrol.Helper.helper.Ndbit2floatIEEE754(valarr: numpy.ndarray, bitsize: int, **kwargs) → numpy.ndarray

Conversion of bit m x n (big endian) bit array (numpy) to IEEE 754 double precision float

Parameters

  • valarr – m x n ndarray of numpy integers representing a bit

  • bitsize – Size of the bit, big endian

  • kwargs –

Returns

m x n/bitsize ndarray of IEEE 754 double precision floats

dfmcontrol.Helper.helper.b2dfloat(bit: numpy.ndarray) → numpy.ndarray

Conversion of bit m x n (big endian) bit array (numpy) to IEEE 754 double precision float according to Jaime’s solution (https://stackoverflow.com/questions/26018448/convert-a-binary-string-into-ieee-754-single-precision-python) :param bit: m x n ndarray of numpy integers representing a bit :return: m x n ndarray of IEEE 754 double precision floats

dfmcontrol.Helper.helper.b2int(bit: numpy.ndarray) → numpy.ndarray

Conversion of m x n (big endian) bit array to integers. :param bit: m x n ndarray of numpy integers (0, 1) representing a bit :return: m x n ndarray of integers

dfmcontrol.Helper.helper.b2sfloat(bit: numpy.ndarray) → numpy.ndarray

Conversion of m x n (big endian) bit array (numpy) to IEEE 754 single precision float according to Jaime’s solution (https://stackoverflow.com/questions/26018448/convert-a-binary-string-into-ieee-754-single-precision-python) :param bit: m x n ndarray of numpy integers representing a bit :return: m x n ndarray of IEEE 754 single precision floats

dfmcontrol.Helper.helper.bitdict(*args)
dfmcontrol.Helper.helper.convertpop2n(bit2num=None, target=None, bitsize=None, **kwargs)

FROM genetic_algortim.get_numeric() TO BE USED IN OTHER FILES.

Convert results list with np.ndarrays of dimension mx1 to numeric data using provided method or builtin routine for multi variable float conversion. Provided method needs to accept np.ndarray with binary information stored as dtype np.uint8 and return np.ndarray of shape nx1 contaning numeric data of float, int. Example def b2int(bit: np.ndarray) -> np.ndarray:

‘’’ Conversion of m x n (big endian) bit array to integers. :param bit2num: m x n ndarray of numpy integers (0, 1) representing a bit :return: m x n ndarray of integers ‘’’ m, n = bit.shape a = 2 ** np.arange(n) return bit @ a

Parameters

  • bit2num – Binary to numeric conversion routine

  • kwargs – kwargs for bit2num

Returns

numeric values for results of the loaded GA data

dfmcontrol.Helper.helper.decdicts(func)
dfmcontrol.Helper.helper.flip_a_coin() → bool

Flip a coin function with 50/50 chance for True/False

dfmcontrol.Helper.helper.float2NdbitIEEE754(valarr: numpy.ndarray, bitsize: int) → numpy.ndarray

Conversion of bit m x n (big endian) bit array (numpy) to IEEE 754 double precision float :param valarr: m x n ndarray of numpy integers representing a bit :param bitsize: Size of the bit, big endian :return: m x n/bitsize ndarray of IEEE 754 double precision floats

dfmcontrol.Helper.helper.floatToBinary32(val: numpy.float32)

https://www.technical-recipes.com/2012/converting-between-binary-and-decimal-representations-of-ieee-754-floating-point-numbers-in-c/ :param value: float :return: binary representation of float

dfmcontrol.Helper.helper.floatToBinary64(val: numpy.float64)

Conversion of float to binary representation

https://www.technical-recipes.com/2012/converting-between-binary-and-decimal-representations-of-ieee-754-floating-point-numbers-in-c/ :param value: float :return: binary representation of float

dfmcontrol.Helper.helper.floatdict(*args)
dfmcontrol.Helper.helper.int2ndbit(valarr: numpy.ndarray, bitsize: int, **kwargs)

Convert an array of integers (or floats) to a bit array of size bitsize * len(valarr) if the valarr is a float, the float will be normalised to the range 0 to 1 and a factor / bias may be applied if specified in kwargs. So that

float = valarr / factor - bias

The float will then be assigned an integer value between 0 and 2**bitsize-1

int = int(float * 2**bitsize-1) # Rounding error may occur

The integer will then be converted to a bit array of size bitsize.

Parameters

  • valarr – MxN matrix of integers

  • bitsize – Size of the bit, big endian, first bit is sign the others are val

  • kwargs – factor: float / bias: float

Returns

MxN matrix of 0, 1 with dtype np.uint8

dfmcontrol.Helper.helper.int_to_binary(integer: int, size: int) → numpy.ndarray

https://stackoverflow.com/questions/699866/python-int-to-binary

Parameters

  • integer – integer to be converted

  • size – size of binary representation

Returns

binary representation of integer

dfmcontrol.Helper.helper.is_decorated(func: Callable) → bool

Check if function is decorated

Parameters

func – function of type function

Returns

True if decorated, False if not

dfmcontrol.Helper.helper.ndbit2int(valarr: numpy.ndarray, bitsize: int, normalised: bool = True, **kwargs)

Conversion of bit m x n (big endian) bit array (numpy) to integer or float depending on the normalised flag. If normalised is true, the integer is normalised to the range 0 to 1 and a factor / bias may be applied if specified in kwargs.

The factor / bias is applied to the integer after normalisation so that the conversion is done as follows

float = (b2n(valarr)/2^(bitsize) * factor) + bias

Parameters

  • valarr – MxN matrix of 0, 1 with dtype np.uint8 with M arrays and N the length of val * bitsize

  • bitsize – Size of the bit, big endian, first bit is sign the others are val

  • normalised – divide by 2**bitsize-1 and apply factor / bias if true

  • kwargs – factor: float / bias: float

Returns

MxN matrix of integers or floats (np.float64)

dfmcontrol.Helper.helper.plot3d(fx, min, max, resolution=100, mode='plot_surface', **kwargs)

Plot 3d function

Parameters

  • fx – function to plot

  • min – min value of x and y

  • max – max value of x and y

  • resolution – resolution of the plot

  • mode – plot_surface or contour

  • kwargs – kwargs for plot_surface, contour / show = True

Returns

None if show = True, else fig, ax

dfmcontrol.Helper.helper.sigmoid(x)

Sigmoid function

Parameters

x – input

Returns

sigmoid(x)

dfmcontrol.Helper.helper.sigmoid2(x, a=1, b=-1, c=0.5, d=0, Q=0.5, nu=1)

Sigmoid function

Parameters

  • x – input

  • a –

  • b –

  • c –

  • d –

  • Q –

  • nu –

Returns

sigmoid(x)

dfmcontrol.Helper.helper.sigmoid_derivative(x)

Derivative of sigmoid function

Parameters

x – input

Returns

sigmoid_derivative(x)

Helper functions in C:

void int2bin(int *value, int *result, int bitsize)

Convert an integer to a bitarray

Parameters

  • value (int) – The integer to be converted to a bitarray

  • bitsize (int) – is the size of the bitarray

  • result (array of ints (int *)) – is the bitarray to be filled with the converted values

Returns

void

void intarr2binarr(int *value, int *result, int bitsize, int size)

Convert an array of integers to an array of bitarrays

Parameters

  • valarr (array of ints (int *)) – The array of integers to be converted to bitarrays (a)

  • bitsize (int) – The size of the bitarrays

  • genes (int) – The number of genes in the bitarrays (n = genes / bitsize; n = a / bitsize)

  • result (array of ints (int *)) – The array of bitarrays to be filled with the converted values (n * bitsize)

Returns

void

void intmat2binmat(int *value, int *result, int bitsize, int size)

Convert a matrix of integers to a matrix of bitarrays (a x b) (individuals x genes)

Parameters

  • valmat (array of ints (int **)) – The matrix of integers to be converted to bitarrays (a x b) (individuals x genes)

  • bitsize (int) – The size of the bitarrays

  • genes (int) – The number of genes in the bitarrays (n = genes * bitsize; n = b * bitsize)

  • individuals (int) – The number of individuals in the bitarrays (m = individuals; m = a)

  • result (array of ints (int **)) – The matrix of bitarrays to be filled with the converted values (m x n)

int bin2int(int *value, int bitsize)

Convert a bitarray to an integer

Parameters

  • value (array of ints (int *)) – The bitarray to be converted to an integer

  • bitsize (int) – The size of the bitarray

Returns

The integer value of the bitarray

Return type

int

void binarr2intarr(int *value, int *result, int bitsize, int size)

Convert an array of bitarrays to an array of integers

Parameters

  • valarr (array of ints (int *)) – The array of bitarrays to be converted to integers (a)

  • bitsize (int) – The size of the bitarrays

  • genes (int) – The number of genes in the bitarrays (n = genes / bitsize; n = a / bitsize)

  • result (array of ints (int *)) – The array of integers to be filled with the converted values (n)

Returns

void

void binmat2intmat(int *value, int *result, int bitsize, int size)

Convert a matrix of bitarrays to a matrix of integers (a x b) (individuals x genes)

Parameters

  • valmat (array of ints (int **)) – The matrix of bitarrays to be converted to integers (a x b) (individuals x genes)

  • bitsize (int) – The size of the bitarrays

  • genes (int) – The number of genes in the bitarrays (n = genes * bitsize; n = b * bitsize)

  • individuals (int) – The number of individuals in the bitarrays (m = individuals; m = a)

  • result (array of ints (int **)) – The matrix of integers to be filled with the converted values (m x n)

void ndbit2int(int **valarr, int bitsize, int genes, int individuals, float factor, float bias, int normalised, float **result)

Convert an integer matrix to a floating point value matrix normalized by a bias and factor or to an integer matrix (of type float**) with integers between -2^bitsize and 2^bitsize - 1.

Parameters

  • valarr (array of ints (int **)) – The matrix of integers to be converted to floating point values (a x b) (individuals x genes)

  • bitsize (int) – The size of the bitarrays

  • genes (int) – The number of genes in the bitarrays (n = genes * bitsize; n = b * bitsize)

  • individuals (int) – The number of individuals in the bitarrays (m = individuals; m = a)

  • factor (float) – The factor to be used for the conversion

  • bias (float) – The bias to be used for the conversion

  • normalised (int) – If 1, the values are normalized by the bias and factor, if 0, the values are not normalized

  • result (array of floats (float **)) – The matrix of floating point values to be filled with the converted values (m x n)

Returns

void

void int2ndbit(float **valarr, int bitsize, int genes, int individuals, float factor, float bias, int normalised, int **result)

Convert a floating point value matrix normalized by a bias and factor or an integer matrix (of type float**) with integers between -2^bitsize and 2^bitsize - 1 to an integer matrix of binary arrays.

Parameters

  • valarr (array of floats (float **)) – The matrix of floating point values to be converted to integers (a x b) (individuals x genes)

  • bitsize (int) – The size of the bitarrays

  • genes (int) – The number of genes in the bitarrays (n = genes * bitsize; n = b * bitsize)

  • individuals (int) – The number of individuals in the bitarrays (m = individuals; m = a)

  • factor (float) – The factor to be used for the conversion

  • bias (float) – The bias to be used for the conversion

  • normalised (int) – If 1, the values are normalized by the bias and factor, if 0, the values are not normalized

  • result (array of ints (int **)) – The matrix of integers to be filled with the converted values (m x n) (individuals x genes * bitsize)

void printMatrix(int **matrix, int rows, int cols)

Print a matrix of integers

Parameters

  • matrix (array of ints (int **)) – The matrix to be printed

  • rows (int) – The number of rows in the matrix

  • cols (int) – The number of columns in the matrix

Returns

void

void printMatrixf(float **matrix, int rows, int cols, int precision)

Print a matrix of floats

Parameters

  • matrix (array of floats (float **)) – The matrix to be printed

  • rows (int) – The number of rows in the matrix

  • cols (int) – The number of columns in the matrix

  • precision (int) – The precision of the floats to be printed

Returns

void

void sigmoid(float *value, float *result, int size)

Calculate the sigmoid of an array of floats

Parameters

  • value (array of floats (float *)) – The array of floats to be converted to sigmoid values (a)

  • size (int) – The size of the array

  • result (array of floats (float *)) – The array of floats to be filled with the converted values (a)

Returns

void

void sigmoid_derivative(float *value, float *result, int size)

Calculate the sigmoid derivative of an array of floats

Parameters

  • value (array of floats (float *)) – The array of floats to be converted to sigmoid derivative values (a)

  • size (int) – The size of the array

  • result (array of floats (float *)) – The array of floats to be filled with the converted values (a)

Returns

void

void sigmoid2(float *x, float a, float b, float c, float d, float Q, float nu, float *result, int size)

Calculate the sigmoid of an array of floats

\[f(x) = \dfrac{a + (b - a)}{1 + Q \cdot \left( \exp(-c \cdot (x -d) \right)^{1/nu}}\]
Parameters

  • x (array of floats (float *)) – The array of floats to be converted to sigmoid values (a)

  • a (float) – The a parameter of the sigmoid function

  • b (float) – The b parameter of the sigmoid function

  • c (float) – The c parameter of the sigmoid function

  • d (float) – The d parameter of the sigmoid function

  • Q (float) – The Q parameter of the sigmoid function

  • nu (float) – The nu parameter of the sigmoid function

  • size (int) – The size of the array

  • result (array of floats (float *)) – The array of floats to be filled with the converted values (a)

Returns

void

void uniform_random(int m, int n, int lower, int upper, int **result)

Create a matrix filled with uniformly distributed integers.

Parameters

  • m (int) – Amount of rows

  • n (int) – Amount of cols

  • lower (int) – Lower bound of the distribution

  • upper (int) – Upper bound of the distribution

  • result (**int (m x n)) – Result matrix to which the distibutution is written to

Returns

void

float gaussian(float x, float mu, float sigma)

Calculate the gaussian (pdf) of a float using the following equation:

\[f(x) = \frac{1}{\sigma \sqrt{2 \pi}} \exp \left( - \frac{(x - \mu)^2}{2 \sigma^2} \right)\]
Parameters

  • x (float) – The float to be converted to gaussian values

  • mu (float) – The mu parameter of the gaussian function

  • sigma (float) – The sigma parameter of the gaussian function

Returns

The gaussian value of the float

Return type

float

float cauchy(float x, float mu, float sigma)

Calculate the cauchy (pdf) of a float using the following equation:

\[f(x) = \frac{1}{\pi} \cdot [ \dfrac{\sigma}{( \frac{x - \mu})^2 + sigma^2} ]}\]
Parameters

  • x (float) – The float to be converted to cauchy values

  • mu (float) – The mu parameter of the cauchy function

  • sigma (float) – The sigma parameter of the cauchy function

Returns

The cauchy value of the float

Return type

float

void roulette_wheel(double *probabilities, int size, int ressize, int *result)

Roulette wheel selection of an index based on probabilities

Parameters

  • probabilities (array of floats (float *)) – The probabilities of the indices

  • size (int) – The size of the probabilities array

  • ressize (int) – The size of the result array (amount of indices to be selected)

  • result (array of ints (int *)) – The index selected
